- Size: 11894x2496x3600mm
- Place of Origin: CHINA
- Brand Name: SHACMAN
- Model Number: SX1254JM434
- Weight: 14000.000 kg

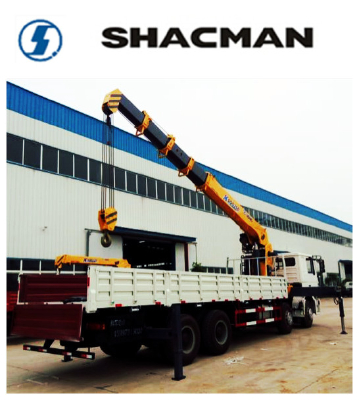

14T TRUCK MOUNTED CRANE WITH SHACMAN F2000/F3000 CHASSIS, WITH XCMG TELESCOPIC CRANE BOOM
Chassis: SHACMAN F2000/F3000
Left/Right hand drive model
Engine: WP10.336, 336HP OR CUMMINS Engine
Cabin: MAN L2000 with one bed.
Transmission: HW15710 10F/2R
Steering: D39
Front axle: HF7 Rear axle: HC16
Box dimension: 9000*2300*600mm
Overall dimension: 11894×2496×3700(mm)
Tire: 1200R20 radial tire.
Hydraulic crane boom:
Max. Lifting capacity: 14000kg
Max. Lifting moment: 35T.M
Recommended power: 30kw
Max.oil flow of hydraulic system: 63L/min
Max. Pressure of hydraulic system: 26MPa
Oil tank capacity; 160L
Installation space;1300mm
Dead weight; 4800kg
Rotation angle; 360°
Please contact me for more details.
Mr. Vincent
Mobile: 86-15275144907 (whatsapp/viber)
