6x4 Concrete Mixer Truck, 7m3 tanker, SHACMAN MAN F3000/F2000 CHASSIS

6x4 Concrete Mixer Truck, 7m3 tanker, SHACMAN MAN F3000/F2000 CHASSIS

  • Min.Order Quantity: 1 Set
  • Supply Ability: 500 Sets per Month
  • Port: CHINA PORT
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:1968-01-01
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  9130x2490x3950mm
  • Place of Origin:  CHINA
  • Brand Name:  SHACMAN
  • Model Number:  SX5254GJBJM334
  • Weight: 13430.000 kg

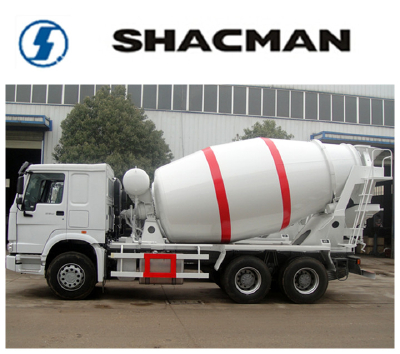

SHACMAN MAN F3000/F2000 6X4 Mixer Truck with 7m3 tanker, ITALY Pump, Motor & Reduction


Details Specification:



SHACMAN F2000/F3000 6x4 CONCRETE Mixer Truck – 7 CBM

Chassis Model

SX5254GJBJM334 ( Left Hand Driving Type)

Weight

Complete kerb mass (kg): 13430

GVW (kg): 32500

Dimensions

LxWxH (mm): 9130x2490x3950

Effective volume(m3): 8

Front/rear overhang(chassis): 1525/2630

Wheel base (mm): 3625 1350

Performance

Max. speed ( km/h): 88

Min. turning circle (m): 17.8

Min. ground clearance (mm): 314

Approach/Departure angle(°): 20/19

Cabin

F2000 /F3000 ,  Lengthened flat roof, one sleeper with air conditioning. Hydraulic suspension cab,

hydraulic chair with seatbelts, 1 sleeping bed, 4 point are suspension, A/C

Engine

WEICHAI brand,  WD615, 336HP.  Option: Cummins engine

Displacement

9.726L

Transmission

FAST 9JS135, 9F & 1R / option: 10F/2R

Clutch

Single plate, diaphragm spring. D-430, Mechanical type, hydraulic and pneumatic operation

Steering

ZF8098, power steering with hydraulic system.

Front Axle

MAN, 1x7500 KGS

Rear Axle

STR13, 2x13000 KGS, 13000kg,Double reduction driving axle with inter-wheel differential and differential lock

Tyres

12.00R20, steel radial tyres with one spare tyre. 10 1

Fuel Tank Volume

380L

Tank Body

7 Cubic Meters, double helix blades three-dimensional stirring system.

Tank Body thickness

5mm

Helix Blades

4mm

Water Tank Volume

400L

Mixer Pump

Eton (USA Brand), OPTION ITALY

Motor

Eton (USA Brand), OPTION ITALY

Speed Reducer

Bonfiglioli (Italy Brand)
