- Size: 8275x2496x3300mm
- Place of Origin: CHINA
- Brand Name: SHACMAN
- Model Number: SX3254JS384
- Weight: 11200.000 kg

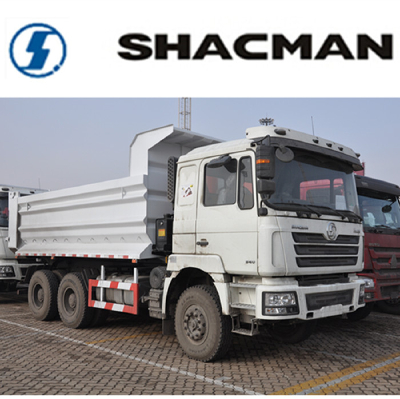

SHACMAN MAN F2000 6X4 10WHEELS Dump truck Payload 20T, 15m3 bucket
Please check the following specification:
Model SHACMAN F2000 SX3254JS384
Engine:Make:WEICHAI, CHINA
Engine model: WD12.336, 336hp engine Euro II emission standard
4 stroke direct injection diesel engine
6 cylinder in-line with water cooling, turbo-charging & intercooling
Maximum output: 336hp(247Kw)at 2200 rpm according to DIN
Maximum torque: 1350Nm at 1300~1600 rpm
Bore: 126mm; Stroke: 155mm;
Displacement: 11.596L;
Transmission: FAST FULLER 9JS135(RTD11509C) 9F/1R
Front Axle: MAN 7500KG
Rear Axles: STR13 2X13000KG
Chassis: Parallel straight ladder structure of C type section 300x80x(8 7)
Steering: MAN ZF8098, Integral circulating ball power steering
Brakes: Service brake: dual circuit compressed air brake
Parking Brake(emergency brake): power spring brake acting on rear wheels
Auxiliary brake: WEVB (engine exhaust valve brake)
Wheel & Types: Rims: 8.5-20, 10 hole-steel Types 12.00-20 tube
Option: 11.00-20 tube, 12.00R20 tube 315/80R22.5
Driver's cab: MAN F2000 standard cabin
with 2 rear windows, mechanical sunroof, hydraulic suspension of cab,
hydraulic driver seat with seatbelts, hydraulic reversal, air condition,
Wheel base : 3800 1350mm
Overall Dimension: 8275×2496×3300 (mm)
Cargo body size: 5400×2300×1200(mm)
Dead weight: 11200kg
Loading capacity : 15000~20000kg
Lifting type: Middle lift
