Model

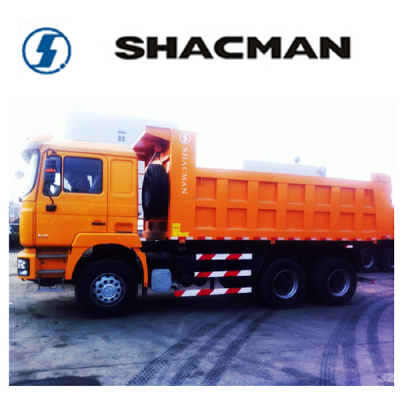

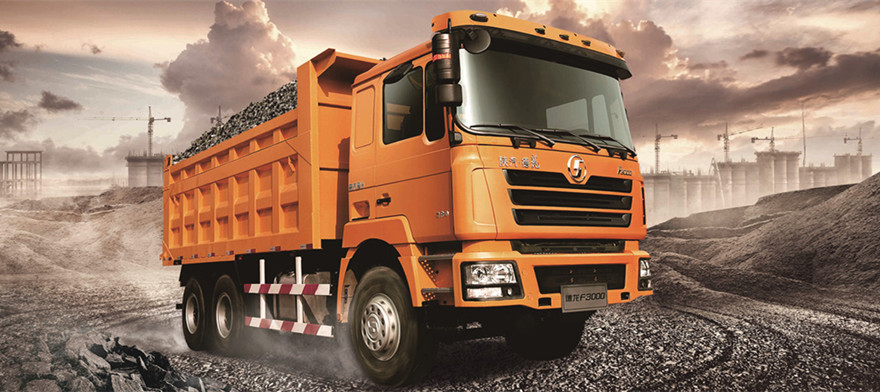

Shacman F3000 /F2000  Dump Truck

Driving type

6x4  (option 4x2, 8x4)

Weight

Complete kerb mass (kg)

14500

GVW (kg)

32500

Dimensions

LxWxH (mm)

8329x2490x3450

Body size(mm)

5400,5600x2300x1100,1300,1500

Front/rear overhang(chassis)

1525/1650

Wheel base (mm)

3800 1350

Track width (mm)

2036/1850

Performance

Max. speed ( km/h)

74

Min. turning circle (m)

17

Min. ground clearance (mm)

314

Approach/Departure angle(°)

22/30

Max. gradeability (%)

33

Transmission

 FAST FULLER 9F/1R OR 10F/2R or 12F/2R  transmission

Brakes

Type

Drum

Service brake

With dual-circuit compressed air brake

Park brake

Power spring brake acting on rear wheel

Auxiliary brake

WEVB

Optional

ABS

Steering

 ZF8098 Power assistant steering

Chassis

Type

Ladder structure with parallel straight

300x8x(8 7)

Suspension

Front suspension

Longitudinal leaf spring

Rear suspension

Inverted leaf spring stabilizator suspension

Tyres

Type(standard)

11.00-20

Optional

12.00R20/11.00R20/12.00-20/12R22.5

Fuel tank

Tank capacity (L)

380

Material

Metal

Cab

Type

MAN  F3000/  F2000, Middle Lengthened flat roof

Equipemets

Hydraulic suspension cab, hydraulic chair with seatbelts,1 sleeping bed…

Engine

Brand

Weichai

Model

WP12.375

Power (kw/HP)

276/375

Max. torque (N.m)/rpm

1500/1200-1600

Displacement (L)

11.596

Emission standard

Euro II

Axles

Brand

HANDE (MAN)

Front axle

7500kg

Rear axle

13000kg,Double reduction driving axle with inter-wheel differential and differential lock

Ratio

5.73
