- Size: 10825*2500*3900mm
- Place of Origin: CHINA
- Brand Name: SHACMAN
- Model Number: SX5315GJBJT346
- Weight: 16500.000 kg

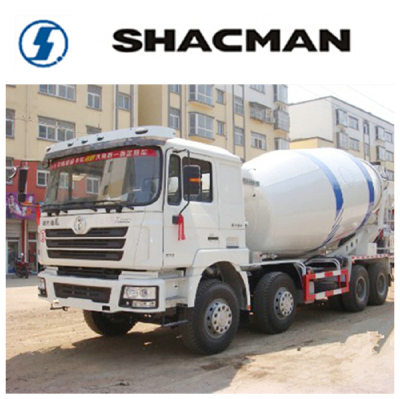

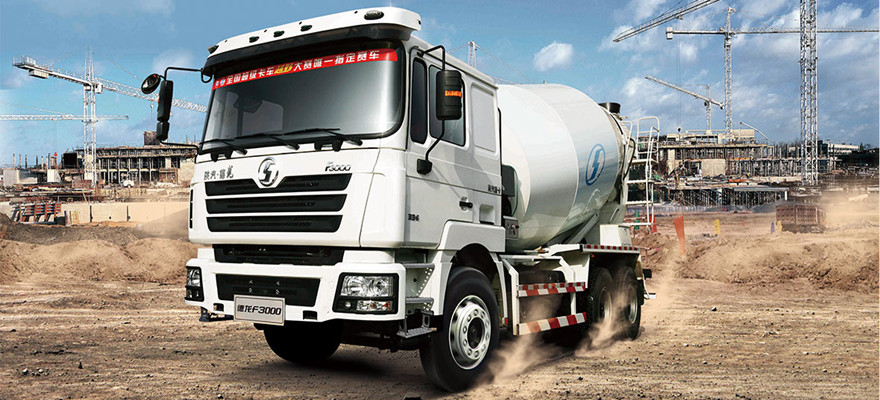

SHACMAN MAN F3000/F2000 8X4 Mixer Truck with 12cbm
Details Specification:
Products Technical Specification | |||
Brand-Series | SHACMAN-F3000 | ||
Product Name | 8*4 Concrete mixer truck | ||
ChassisModel | SX5315GJBJT346 | ||
Emission Standard | Euro 2 | ||
Fuel type | Diesel | ||
Cabin | D`LONG,F3000 With A/C,sleeper | ||
Whole vehicle main dimensions (mm) | Overall dimensions (L×W×H) | 10825*2500*3900 | |
Wheel base | 1800 3400 1350 | ||
Front overhang | 1525 | ||
Rear overhang | 1875 | ||
Min. ground clearance | 500 | ||
Weight data (kg) | G.V.W | 31000 | |
Curb weight (chassis) | 16500 | ||
Max payload | 30000 | ||
Whole vehicle | Max. speed (km/h) | 90 | |
Max. slope of climb (%) | 35 | ||
Engine | Model | WP10.380E32 | |
Maximum power | 280kw / 380hp | ||
Number of cylinders | 6 | ||
Displacement (L) | 9726 | ||
Engine Manufacturer | WeiChai power | ||
Transmission | Model | FAST,9 | |
Number of gears | 9 forward gears& 1 reverse | ||
Axle | Front Load capacity (ton) | 7.5 MAN | |
Rear Load capacity (ton) | 16T MAN Casting | ||
Suspension | Front | 13- Leaf spring | |
Rear | 14-leaf spring | ||
Steering Wheel | left/right hand drive | LHD | |
Brake system | Service brake | Air braking | |
Electric device | Rated voltage | 24V | |
Tyres & Quantity | 12.00R20 & 12 1 | ||
Mixing Tank Description | |||
Material and Thickness | Q345,Cylinder wall thickness 5mm, headthickness 6mm | ||
Mixing capacity | 16 cbm | ||
Mixing tube angle | 13.5 ° | ||
Feed rate | 3 m3 / min | ||
The feed speed | ≥ 2 m3/min | ||
Fill Rate | 58% | ||
Residual Discharge rate | <0.2% | ||
Slump range | 40 ~ 210 mm | ||
Hydraulic motors,oil pump,Decelerator | Italy PMP Brand. | ||
Radiator | CHINA Brand. | ||
water supply system | Ways for supplying water | Air Pressure Water Supply | |
Tank capacity | 500L | ||
